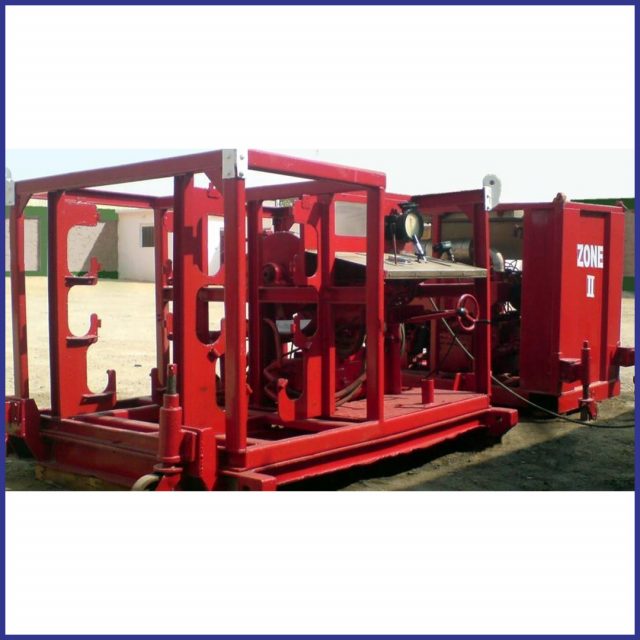

A) Power Pack
Power source is on a single chassis equipped with four (4) adjustable jacks and four
(4) castor wheels. The whole load is Heli-portable, with four (4) legged slings maximum weight including hydraulic oil and diesel oil not to be more that 3,000 lbs.
Specification
- Diesel engine, 90 BHP.
- Zone II with non spark starter, anti-static fan belt, exhaust lagging non asbestos, spark arrestor, over speed trip and overheating trip. “Temperature of the exhaust gasses doesn’t exceed 300oC.
The surface temperature of the engine and exhaust gases doesn’t exceed 250oC under full load condition. Explosion vent is provided on crankcase of more than 0.5m3.
B) Reel Pack
The winch is on a single chassis equipped with four (4) adjustable jacks and four (4) castor wheels.
The side of the winch Specifications
- Gear box for (4) speeds c/w double key way on the shaft and also in coupling and adjoining shaft.
- The diameter of the reel core is not to be less than 9″. The sides of drum are mounted to the core by threads (no welding).
- It has a maximum line speed of: 3,800 feet per minute at surface 2,000 feet per minute at 18,000 feet.
- It has a maximum line pull of 5,000 lbs at 18,000 feet.
- The power pack and reel pack contains the following features: Engine oil temperature
Engine oil pressure
Engine RPM’s (to also monitor the engine time) Throttle
Hydraulic oil temperature Hydraulic oil pressure
Accessory Equipment
- Martin Decker weight indicator 0-2,000 lbs. on the operator console complete with 100 feet of hose and connection to connect a Martin Decker weight indicator.
- Counter Head Assembly (feet).
- Veeder Root Counter Assembly (feet) and mounted on the operating console.
